Hugo Vapor 168 E Pipe Pen Vaporizer Epipe Oldfashioned Mod Starter Kit Builtin Battery Manual Switch Adjustable Voltage Oil

Description

Item specifics

Brand Name: greenlightvapes
Type: With Battery
Model Number: 168 e-pipe mod e cig electronic vape
Material: PLASTIC
Low Voltage Alarm Function: Yes
Atomizers Identification Function: No
Appearance: Tobacco Pipe
Monitoring Function Of Smoking Number: No
Short-circuit Protection Function: Yes
Temperature Control: No
Compatible Battery: 18650
TCR Adjustment Modes: No
Display screen: No
Nominal Capacity: 900mAh
Built-in Or External Battery: Built-in
Firmware Upgradeable: No
Overheating Protection Function: Yes
USB Charger: Yes
Silicone Case: No
Compatible Model: e cigarette smoking pipe vaporizer VS 618 E PIPE
Wholesale: support
Drop: support

Product Description

How to charge 168 e pipe ?

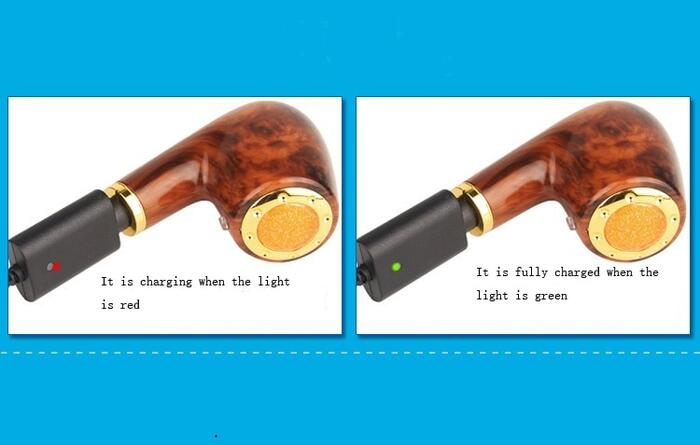

Start charging:light flashes 3 times when smoking,it means the battery needs recharge.

When charging:light color is red

Fully charged:light color will turn to green.

How to use the 168 e-pipe ?

1.Please press the button 5 times continuously within 2 seconds.

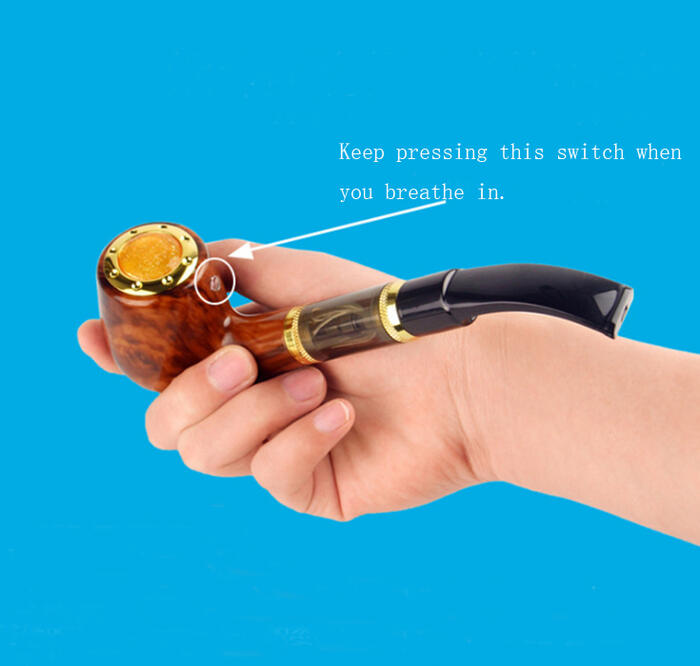

2.Keep pressing the button when you inhale.

How to change the voltage output patterns ?

Pattern I,press the button 5 times continuously within 2 seconds,flashes red light,output 3.2V

Pattern II,press the button 5 times continuously within 2 seconds,flashes red&blue light,output 3.6V

Pattern III,press the button 5 times continuously within 2 seconds,flashes blue light,output 4.2V

Pattern IV,power off mode

Technical Parameters:

Battery:900mAh

Charging Power 4.2V/420mA

Working Voltage 3.3V-4.2V/matching 3.7V lithium battery

Static Current =2UA

LED Color compatible 4 LEDs with blue/red color

flashes red light, output 3.2V

flashes red &bule light, output 3.6V

flashes blue light, output 4.2V

power off mode

Load Resistance 1.5~3.3R

Pattern I(4.2V battery)

Voltage

Output Patterns

Pattern II(4.2V battery)

Pattern III(4.2V battery)

Pattern IV(4.2V battery)

Quit using Solution:

The Pipe cartridge is designed according to Nicotine Replacement Therapy (NRT), and it helps smokers

to quit smoking via gradually reduce the inhale nicotine. The persons who wish to quit smoking may

consider the four steps below:

Four steps to quit smoking:

Step1: Starting with the 30mg nicotine of Pipe cartridge and use it for 6 weeks by normal smoking habit;

Step2: Then switch to the 21mg nicotine of Pipe cartridge and use it for 12 weeks by normal smoking

habit;

Step3: Then switch to the alternation of the 21mg nicotine of Pipe cartridge and 0mg nicotine for 4 weeks

by normal somking habitl

Step4: Finally,quit smoking by using the 0mg nicoting of Pipe cartridge by normal smoking to quit smoking.

Appropriate User:

1.The people who have been smoking for a long period of time and have hard feeling of smoking;

2.The smoking habitants who work in the smoking forbidden area;

3.The smoking who want to quit smoking can adopt the nicotine reducing method carefully in order to quit

smoking in a non-painful way.

Precautions:

1. Do not charge the battery beside any high temperature heat source;

2. Do not seal the battery directly or use edge tool to implate the battery;

3. This charger is customized for Pipe using, please do not use it to charge other batteries.

4. Please put the Pipe out of the reach of children.

5. The Pipe should use the specific charger and battery provided from our company.

6. For the first-time using, the battery should be full charged for 8 hours; for normal using, charge the battery for

3-4 hours until the indicate light turns green.

Kit Component:

168 main body;

1*pc drip tip;

1*pc replacement coil;

1*pc USB charger;

1*pc User Manual

More e pipe units:

Packaging Details

Unit Type: piece
Package Weight: 0.5kg (1.10lb.)
Package Size: 23cm x 10cm x 5cm (9.06in x 3.94in x 1.97in)
