Fisheye Wide View Angle 180 degree 2MP Full HD 1080P High Speed 120fps USB Camera Module for Android Linux Windows Mac

Description

Item specifics

Brand Name: KAYETON
Connectivity: USB
Dimensions (L x W x D)(mm): 32mmX32mm,other size can be customized
Model Number: KYT-U200-FER01
Supported Operating Systems: Windows 10,Windows Vista,Windows 8,Windows 7,Windows 98,Mac os,Windows XP
High Definition: 1080P(Full-HD)
is_customized: Yes
Power Supply(V): DC 5V
IR Distance(m): 0
Network Interface: None
Power Consumption(W): 5V / 150mA
Sensor: CMOS
Minimum Illumination(Lux): 0.5 lux
Supported Mobile Systems: Android
Video Compression Format: MJPEG
Style: Mini Camera
Lens (mm): Fisheye Wide View Angle Lens
Special Features: 2Megapixel USB Camera Module
Audio Output: None
Technology: 2MP Full HD 1080P USB Camera Module
Type: usb camera module
Sensor: OmniVision OV2710
Compression format: MJPEG YUY2
Interface: USB 2.0 high speed
Max resolution: 2.0megapixel 1920X1080
UVC compliance: Plug and play, driverless
Support OS: Windows, Linux, Android, Mac
Focus: Manual
Fisheye Wide View Angle Lens: 180 degree
OTG support: Smartphone support
High frame rate: 120fps MJPEG

Product Description

Fisheye Wide View Angle 180 degree 2MP Full HD 1080P High Speed 120fps USB Camera Module for Android Linux Windows Mac

Feature:

*2.0Megapixel Full HD 1080P High Speed 120fps USB Camera Module

with Fisheye Wide View Angle 180degree Lens

*UVC compliance for use in OS Windows, Linux, Android, Mac

*OTG support

Specification:

Model: KYT-U200-FER01

Sensor: OmniVision OV2710

Focus: Manual

Resolution & frame :

1920X1080 MJPEG 30fps YUY2 6fps

1280X1024 MJPEG 30fps YUY2 6fps

1280X720 MJPEG 60fps YUY2 9fps

1024X768 MJPEG 30fps YUY2 9fps

800X600 MJPEG 60fps YUY2 21fps

640X480 MJPEG 120fps YUY2 30fps

352X288 MJPEG 120fps YUY2 30fps

320X240 MJPEG 120fps YUY2 30fps

Compression format: MJPEG YUY2

Interface: USB 2.0

Lens Parameter : Fisheye Wide View Angle 180degree Lens

Voltage: DC5V

USB Video Class (UVC): Support

OTG: Support

Auto exposure AEC: Support

Auto white blance AEB: Support

Adjustable parameters: Brightness/Contrast/Color saturation/Definition/Gamma/WB

Dimension: 32mmX32mm,other size can be customized

Operating Temperature: -20°C to 70°C

Support OS: Windows, Linux, MAC, Android

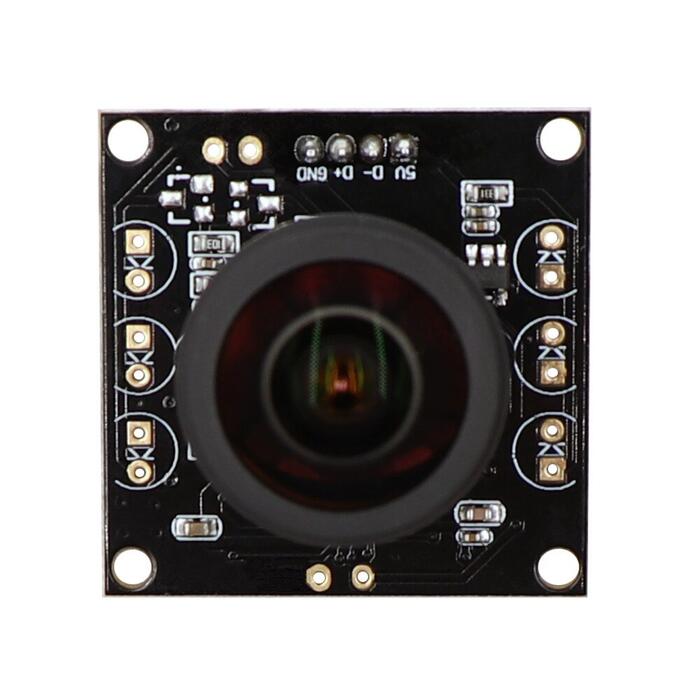

Product detail:

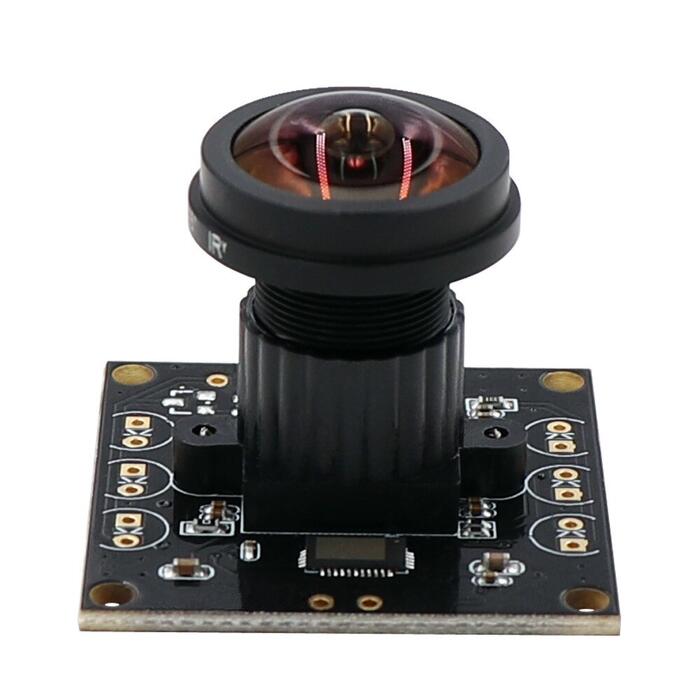

2.0Megapixel Full HD 1080P High Speed 120fps USB Camera Module

with Fisheye Wide View Angle 180degree Lens

MJPEG YUY2 format

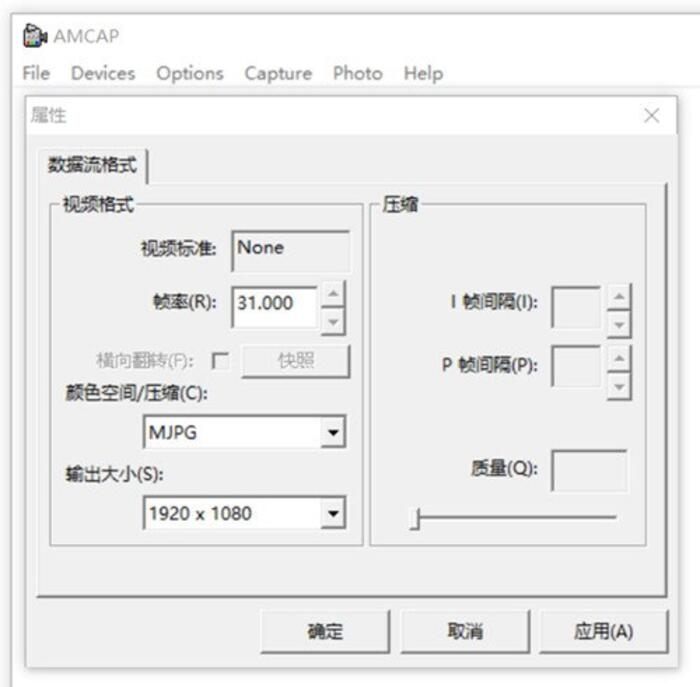

1920X1080 MJPEG 30fps YUY2 6fps

1280X1024 MJPEG 30fps YUY2 6fps

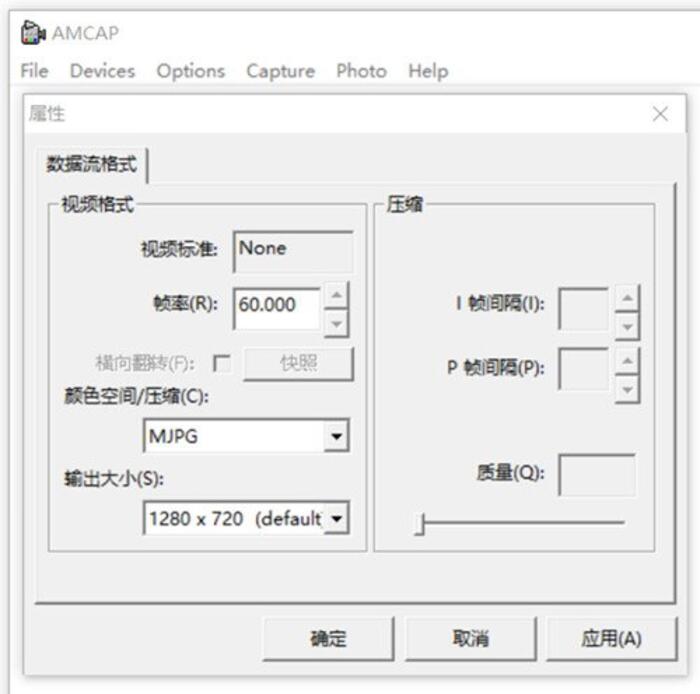

1280X720 MJPEG 60fps YUY2 9fps

1024X768 MJPEG 30fps YUY2 9fps

800X600 MJPEG 60fps YUY2 21fps

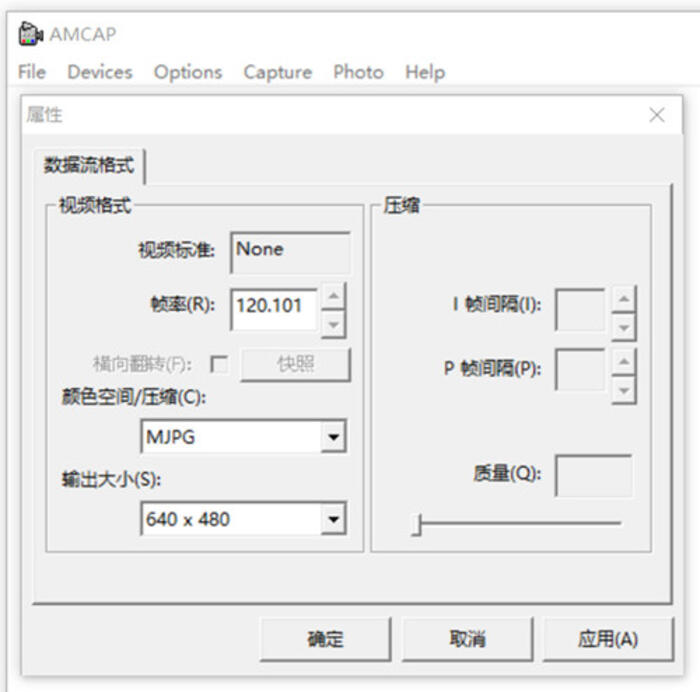

640X480 MJPEG 120fps YUY2 30fps

352X288 MJPEG 120fps YUY2 30fps

320X240 MJPEG 120fps YUY2 30fps

UVC compliance, Plug and play, Driver free

OS Support : Windows,Linux,Android,Mac

OTG support

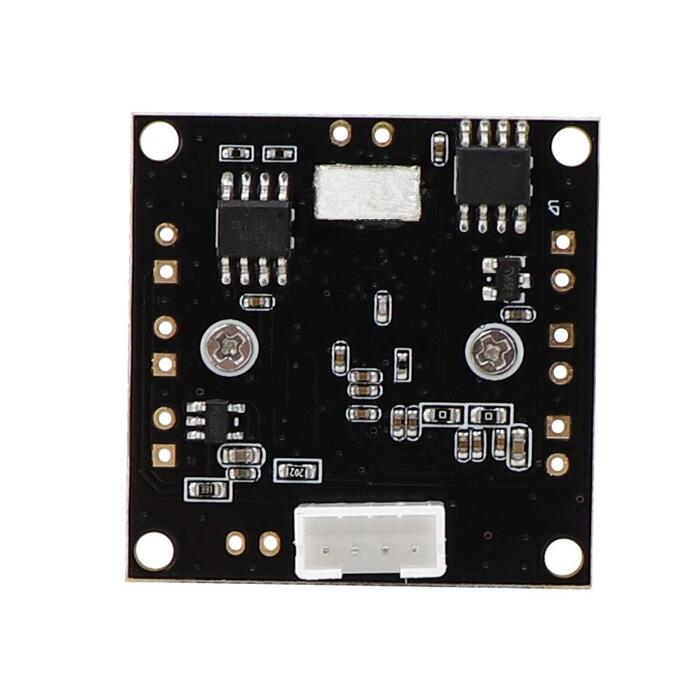

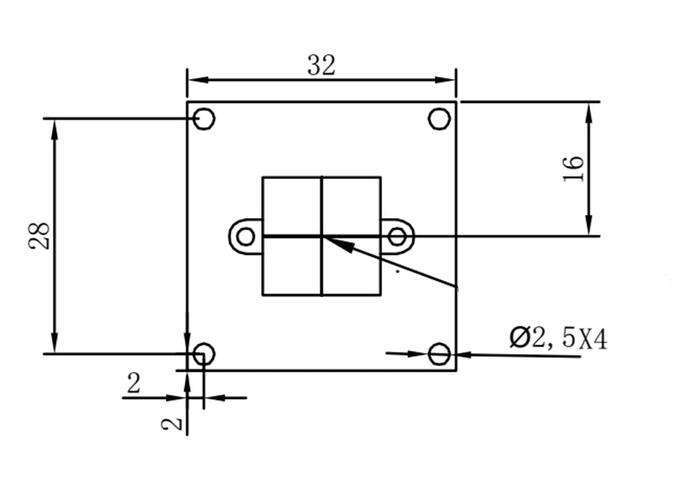

Dimension: Board 32mm(L)x32mm(W)

Packing includes:

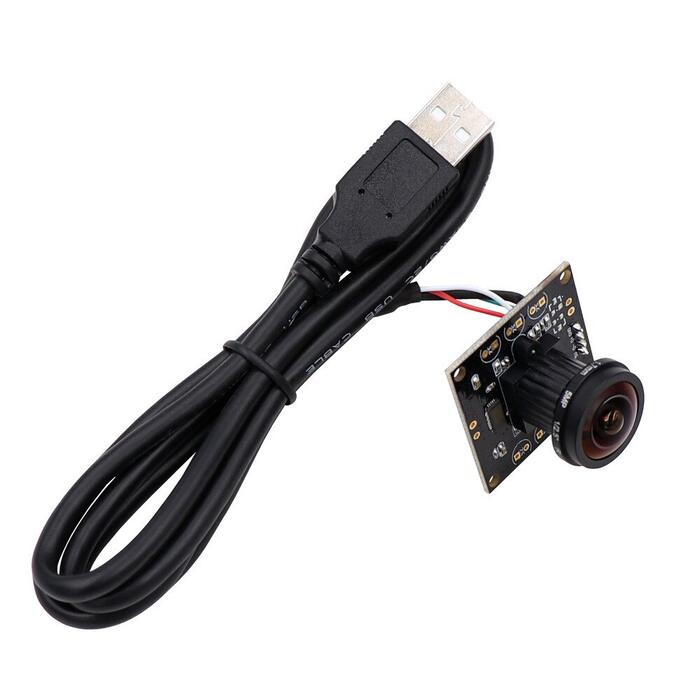

1PCS 2.0Megapixel High Speed USB Camera Module with Fisheye Wide View Angle 180degree Lens with USB Cable

Payment:

1.Alipay ,Paypal , T/T, Western Union,Visa ,MasterCard ,Escrow are acceptable.

2.Discount is available if you need a large amount , please contact us .

1. Worldwid .(Except some countries)

2. Orders processed timely after the payment verification.Usually,we can ship in 1-7days.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4. The shipment by Post Air Mail for less than 2kg goods ,generally it will take 25-45 working days(some countries can be much longer) ,if you need the goods very urgently ,please choose DHL etc . It always takes about 3-7 days to arrive.

5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

7.Any extra custom duties or import taxes are not included.We will declare low cost for you.Please contact us if you want to delcare real cost.

8. The images shown are maybe not the very accurated because we update our products all the time.Welcome to advice us if you find there is any mistakes on our product discription!

Service:

1. Please contact us if our products have problem.we will resend a new one or partial refund.please don t open a dispute directly!

2. All returned items must be in the original packaging and you must provide us with the tracking number, specific reason for the return, and your po#. As the items returned, buyer should pay for the return fee.

3. If the orders haven t arrived in time.please contact us,we will refund or exceed the protection time,then you have enough protection time.Please don t open a dispute directly.

Feedback:

1. We maintain high standards of excellence and strive for 100% customer satisfaction!

2. Feedback is very important. We request that you contact us immediately before you give us neutral or negative feedback,

so that we can satisfactorily address your concerns.

3. Please leave us positive feedback and give all 5 stars if you are satisfied with our products,

your highly recommend is our motivate to move further, we will really appreciate your time if you left positive feedback.

Packaging Details

Unit Type: piece
Package Weight: 0.25kg (0.55lb.)
Package Size: 18cm x 10cm x 13cm (7.09in x 3.94in x 5.12in)
