E575T2 Dualport PCIE X1 Gigabit Ethernet Network Card 101001000Mbps LAN Adapter Controller Wired intel 82575 E1G42ET

Name: E575T2 Dualport PCIE X1 Gigabit Ethernet Network Card 101001000Mbps LAN Adapter Controller Wired intel 82575 E1G42ET
SKU: SKU691525P
Availability: InStock
Rating: 3 (1 reviews)

Network Cards

E575T2 Dualport PCIE X1 Gigabit Ethernet Network Card 101001000Mbps LAN Adapter Controller Wired intel 82575 E1G42ET - Image 2

E575T2 Dualport PCIE X1 Gigabit Ethernet Network Card 101001000Mbps LAN Adapter Controller Wired intel 82575 E1G42ET - Image 3

E575T2 Dualport PCIE X1 Gigabit Ethernet Network Card 101001000Mbps LAN Adapter Controller Wired intel 82575 E1G42ET - Image 4

E575T2 Dualport PCIE X1 Gigabit Ethernet Network Card 101001000Mbps LAN Adapter Controller Wired intel 82575 E1G42ET - Image 5

Description

Item specifics

Brand Name: SYBA
Type: Wired
Transmission Rate: 10/100/1000Mbps
Kind: Internal
Adapter Socket: PCI-E
Interface Type: PCI Express
Application: Desktop
Model Number: E575T2
Package: Yes
Certification: CE FC
Applicable Network Type: Gigabit Ethernet
Transmission Speed: 600 Mbps
Lan Transmission Rate: 1000M Ethernet

Product Description

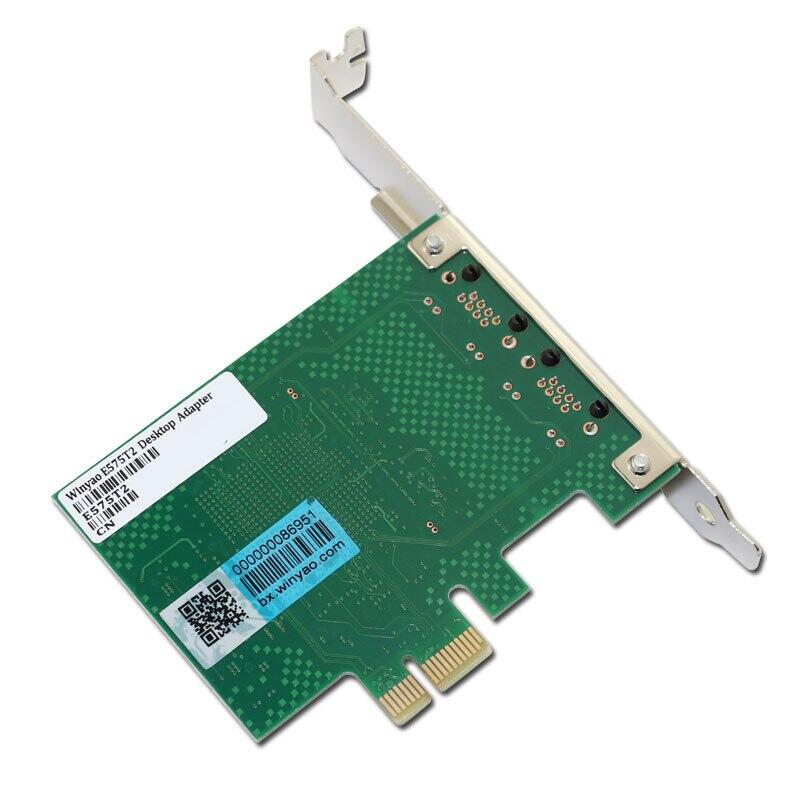

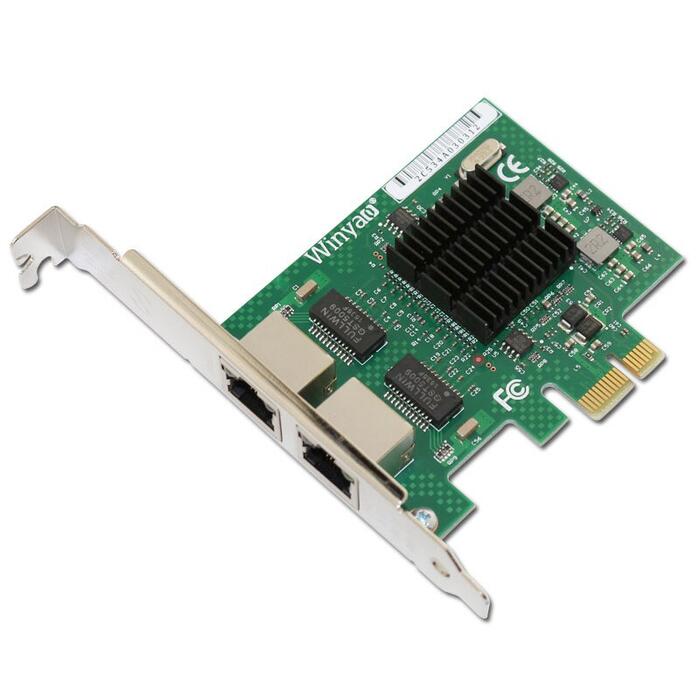

This item is based on intel 82575EB Gigabit Ethernet Controller.Is PCI-Express X1 network interface card that contains

Two Gigabit RJ45 ports on a PCI-Express adapter.

Copper Gigabit Ethernet 1000Base-T :
Independently copper Gigabit Ethernet channels support four Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T)
Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation
Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.
RJ-45 female connectors

Common Key features:
Support PCI Express Base Specification 2.1 (5 GTs)
High performance, reliability, and low power use in Intel 82575 Dual integrated MAC + PHY and SERDES chip Controllers
Ultra deep, packet buffer per channel lowers CPU utilization
Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
Server class reliability, availability and performance features: Link Aggregation and Load Balancing

Priority queuing – 802.1p layer 2 priority encoding
Virtual LANs –802.1q VLAN tagging
Jumbo Frame (9.5KB)
802.x flow control
Multicast/ broadcast Packet replication
Supports Vital Product Data (VPD)
LEDs indicators for link/Activity/Speed status

Specifications

Model E575T2
Chipset intel 82575
Slot Type PCI-E X1
Interface RJ45 * 2
Transmission Rate 10/100/1000Mbps
Boot Rom Yes
Management Features IPMI pass-through via SMBus or NC-SI, WoL, PXE remote boot, ISCSI boot, VLAN filtering
Transmitted Power
Supports System DOS , Windows , Linux , FREEBSD, NWSERVER

Packing List

1 x Network Card
1 x Low profile bracket
1 X CD

???
