Description
Item specifics
Brand Name: Ygctfnp
Novelty: New
Interface Type: USB
Type: Film Scanner
Colour Depth: 32 Bit
Scan Element Type: CCD
Time to market: Mar-13
Model Number: Film Scanner
Scan Breadth: A2
Scanning Light Source: Natural Light
Optical Resolution: 2592*1944
Scan Speed: 1800dpi
Product name: Film Scanner
Optical Resolution: 1800dpi & 3600dpi
Picture Effects: black, white, slides, negatives
Light Source: LED Backlight
File format : Picture, JPEG
Supports system: Windows XP / Vista / 7
External memory card : Supports SD card up to 32GB
Max Paper Size: 35mm
Product Type: Film Scanner
Plug: EU / US Plug
Product Description
Portable 5MP 35mm Negative Film Scanner Negative Slide Photo film Converts USB Cable LCD Slide 2.4″ TFT for Picture
Notice:
1. We have EU plug, US plug, please specify the plug specification in the message;
Usually send EU plug
Product Description
Specificaties Function:Film scan/USB MSDC Interface: USB2.0 Image sensor: 5.0 MEGA pixels(2592*1944) Display: Color 2.4″ TFT lCD(480*234) Focus Range: Fixed Focus Exposure Control: Automatic/Manual(-2.0EV- +2.0EV) White Balance: Automatic Resolution: 5.0 Mega Pixels/10 Mega pixel(interpolation) Scan Quality: 1800Dpi &3600 Dpi(interpolation) Film Type: 35mm Film, Monchrome,Slide Picture Effets: B&W,Slides, Negatives Light source: LED Back light File Format: Picture:JPEG TV-Out type: NTSC/PAL External memory card: SD Card up to 32GB Power supply: DC 5V (Adapter USB port) Multi-languages support Porduct Size: 88*86*102mm GW: 300

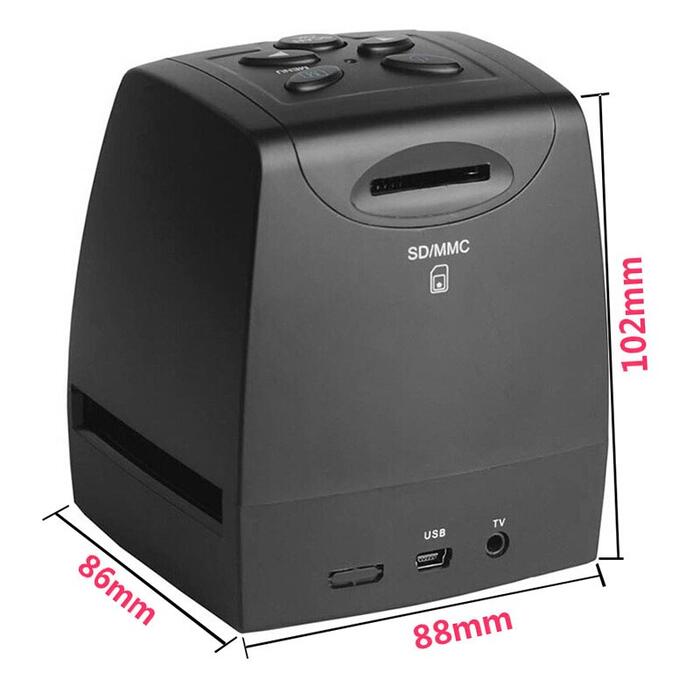

Size
88.15(L)X86.25(W)X111.20(H)mm
Weight
About 296g
Sensor
1/3.2” 5mega CMOS
Effective resolution
5mega
Storage media
Internal:building-in32MBflash card
External: SD card, compatible SDHC card
Sensitivity
auto
Lens
Fixed focus F/6.0, F=6.34mm
Focus range
5.6cm
Still image
Format: JPEG, resolution: 5Mp, 10Mp (interpolation)
Zoom
no
Display
2.36”TFT
TV output format
NTSC/PAL
Light sources
Backlight compensation
White balance
auto
Exposure compensation
auto
Interface
MSDC: USB2.0(high speed)
Auto turn on
no
Power
DC 5V
Operation system
Windows XP, Vista , 7
CPU
Intel Pentium 42.8GHz above
Memory
512MB above
Video card
64MB or high top video card
Transmission connection
Standard USB2.0 or above
Hard disk capacity
At least 200MB
User Manual
Yes
Adapter
NO
Positive board holder
Yes
Negative board holder
Yes
Brush
Yes
USB cable
Yes
Package list
1 x Photo Scanner
1 x USB Cable
1 x Video Cable
2 x Film Tray
1 x Brush
1 x User Manual
Usually not send retail package
How To Connect With Computer
Take USB cable connect film scanner to computer ,
1. Click Scanner “Power—-(SD card into Scanner)—-MENU—-USB MSDC—-SCAN OK”
Computer system will automatically installs driver software
( Note: if your computer not permit to install driver software,you can click USB xx icon to change the system set ) as below picture show
2. After Successful installation, ( installation need waiting about 15 minutes),
repeat one time : Click “Power—-(SD card into Scanner)—-MENU—-USB MSDC—-SCAN OK”
then you can open scanner removable disk on computer and to view and edit captured pictures.
( Notice: when you view and edit pictures on computer, don t touch the Film Scanner button, because the SD card will be automatically closed (show ” Card error “) , you need to plug the SD card again)
1. c hange the system set
2. Successful installation
Packaging Details
Unit Type: piece
Package Weight: 0.8kg (1.76lb.)
Package Size: 27cm x 27cm x 15cm (10.63in x 10.63in x 5.91in)
