Description
Item specifics
Brand Name: Tenda
Type: Wireless
With Modem Function: No
Max. LAN Data Rate: 1000Mbps
Model Number: AC11
Standards And Protocols: Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11g
Package: No
Application: Home
Function: Firewall,QoS
LAN Ports: 3
WAN Ports: 1 x10/100/1000Mbps
Number of USB Interfaces: None
Supports WDS: Yes
Supports WPS: Yes
Wi-Fi Supported Frequency: 2.4G & 5G
2.4G Wi-Fi Transmission Rate: 300 Mbps
Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 10/100/1000Mbps
5G Wi-Fi Transmission Rate: 867Mbps
Product Size: : 220*141.5*49mm
Broadband access method:: PPPoE, Dynamic IP, Static IP,Automatic Detection
Product Description
Product Overview
Tenda AC11 is a dual-band wireless router designed for large-scale homes that are suitable for 200M and above fiber-optic homes. Independent signal enhancement module, Beamforming intelligent signal enhancement technology, external 5*6dBi high gain antenna, signal coverage of 120 square meters can through three walls, and support signal strength adjustment, according to the specific use environment, select the appropriate signal strength .
Equipped with Gigabit wired port, supporting 200M and above fiber access, two-way 5G WiFi design, achieving 867M of WiFi access intelligent terminal, ensuring full utilization of 200M and above. And support dual-band integration, priority to connect fast WiFi band; support broadband
account automatic migration technology, easily replace old routers.
Main Features
Support 200MB and above fiber access
5*6dBi enhanced antennas covering 120 square meters with three walls
2.4G&5G uses signal enhancement module
Beamforming Signal Intelligent Tracking Technology
Signal strength adjustment function
Flood control network function
Support free installation online
?

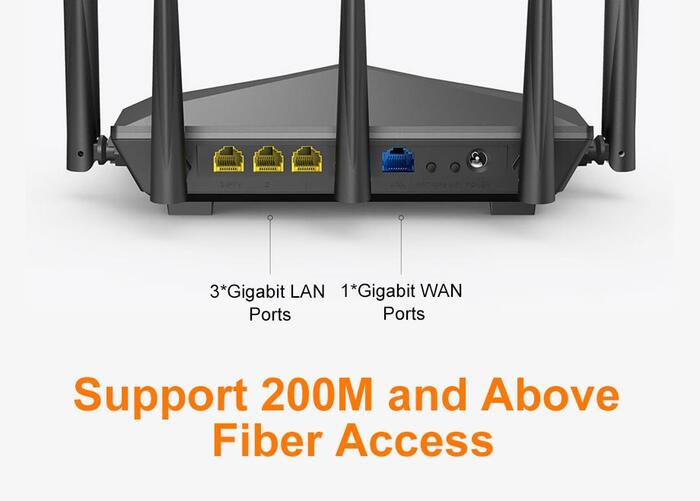

The AC11 s WAN/LAN ports are equipped with Gigabit wired network ports to support 200MB
and above fiber access; two 5G WiFi designs enable 867M WiFi access intelligent
terminals, ensuring full utilization of 200M and above.

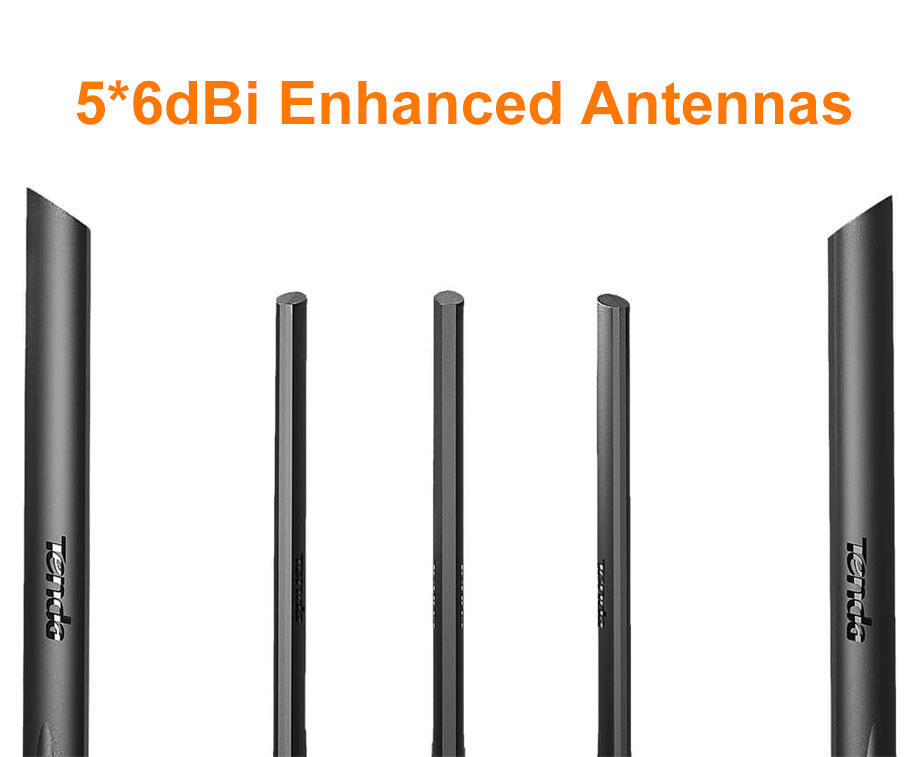

5*6dBi high-gain omnidirectional antennas design, which can increase the coverage by
30% compared with the common 4*5dBi dual-band routers. It can meet
the coverage of 120 square meters of large units,
and can also access the Internet after wearing
three walls.
(Data from Tenda laboratory, actual coverage may changes by different environmental.)
Both 2.4GHz and 5GHz use independent signal enhancement modules. WiFi penetration
is stronger and transmission is farther. Even in the corner of the home,
you can watch movies.
Supports Beamforming signal intelligent tracking technology, according to the user s
location, the WiFi signal is aggregated into a beam directly to
the user s Internet access device to achieve
accurate wall penetration.
With signal strength adjustment function, the user can freely switch the signal
low power/standard/enhancement mode through the APP
to meet the Wi-Fi usage requirements
in different environments.
After the anti-mite network function is enabled, when the new device is connected to the
router, the app will receive a push reminder. If it is found to be an illegal device,
the illegal device can be blacked out directly on the APP.
AC11 is equipped with the latest account password migration function. Simply connect the
WAN port of the old router to the LAN port of AC11, and automatically copy the
broadband account password when power is on,
eliminating the trouble of installing settings.
Product Display
Product Specification
Standard&Protocol:
IEEE802.3, IEEE802.3u
Interface:
1 Gigabit WAN ports+ 3 Gigabit LAN ports
Button:
Reset / WPS button; Wifi Button
Power Supply:
Power Input: 200-240V—50/60Hz
Power Output: DC 12V 1A
Frequency:
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Basic Features:
Support signal strength adjustment function
Support SSID broadcast and hide
Support MU-MIMO
Support Beamforming
Wireless Security:
WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption
Antenna:
5*6dBi External Dual Band Antennas
Working mode:
Wireless routing model
Client+AP mode
Wireless Repeater
WISP mode
Dimension :
220*141.5*49mm
LED :
1*WAN?1*LAN?1*Wi-Fi?1*SYS
Characteristic function:
Password migration function
WiFi timing switch
Intelligent power saving
Panel light switch
Tenda App local and remote management
Package Content:
1* AC11 Wireless Router
1* Power adapter
1* Installation guide
Packaging Details
Unit Type: piece
Package Weight: 0.65kg (1.43lb.)
Package Size: 30cm x 20cm x 10cm (11.81in x 7.87in x 3.94in)
