Description
Item specifics
Resolution: > 420 TV Line
Installation: Wall Mounting
Display Screen Type: Color
Kit Configuration: One to One video doorphone
Connection Type: Wired
Sensor Size(Inch): 1/4
Material: Metal ABS PMMA
Doorbell: Yes
Model Number: V70A
Samrt Home Interface: No
Waterproof: Yes
Zone Input: None
Display Size: 7
Type: Indoor Machine
Technology: Digital
Access Control: Inductive Card
IP Camera Interface: No
Answering Mode: Hands-free
Connection Method: Wired
Camera Sensor type: CMOS
Viewing Angle (°): 90
Power: 15V DC
Brand Name: JOINLGO
Camera: 700TVL SONY
Power: 15VDC
Color: White
Monitor amount: one
type: video intercom / video doorphone
Monitor size: 7 inch color screen monitor
Product Description
WIRED 7″ TFT LCD HOME VIDEO INTERCOM SYSTEM
Features
7″ TFT digital color LCD;
16 melodies for ringing selection;
Show outdoor image manually.
Dual-way intercom between the screen and outdoor unit.
4-wire connector.
Do not disturb mode (ring cancel function)
Monitor unlock control;
Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
Hands-free intercommunication.
Brightness, chroma and volume adjustable
With micro-processing technology, auto-remote control, excellent performance and high Reliability.
Additional monitor available up to 4(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)
Details
It is a door phone which can show you what is going on outside doors on a clearly 7″ full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.
Specification
Indoor Monitor
LCD Screen 7″ TFT
Resolution 800×480
Calling duration About 120 seconds
Monitor duration About 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -35 ~ 50 Celsius
Installation Wall mounting
Material ABS

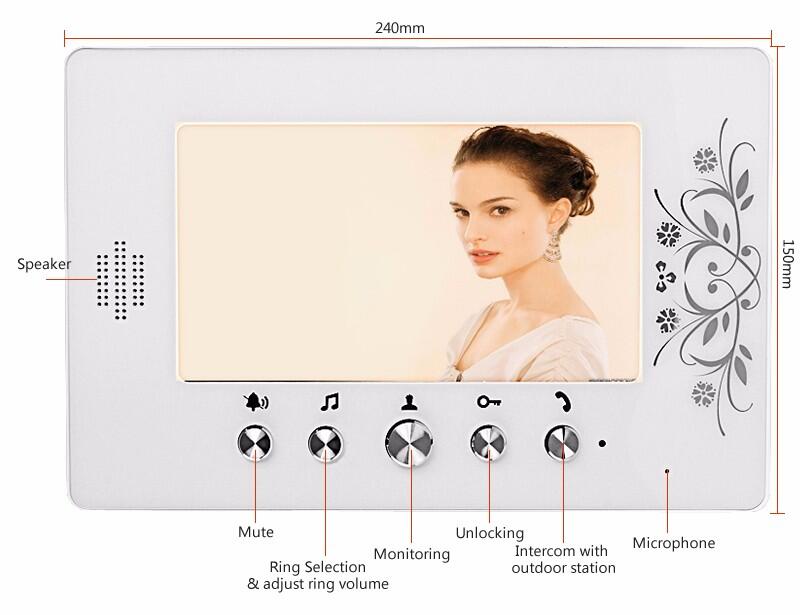

Size 240(L) * 150(W) * 27(H)mm
Net Weight 500g
Package
1 x 7″ monitor

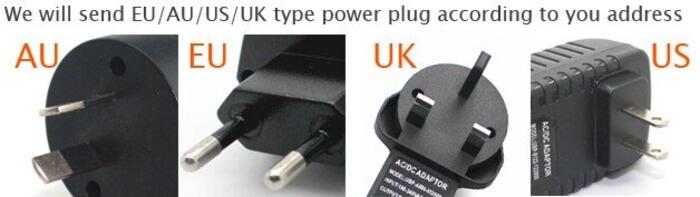

1 x power plug
1 x screws and connectors for installation
Return
We will refund you if you return the items within 30 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions.
If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
Warranty & Maintenance
30 Days Money Back Guarantee If you are not satisfied with the item purchased from us. Please inform us in writing within 30 days of receipt of goods. We will guide you to return and refund the item. Please note that the postages / custom fees(if any) spended in such an order are on the customer s cost.
Free Replacement If you receive a not-as-described (e.g. defective, incorrect, part missing) item, please contact us when you get the item. We will arrange a replacement as soon as the case is confirmed.
Suppliers Warranty We offer ONE YEAR warranty on this product. If your item has any warranty issue please contact us for a satisfying solution.The buyer should bear the costs for return.
If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Feedback
Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
Packaging Details
Unit Type: piece
Package Weight: 0.9kg (1.98lb.)
Package Size: 25cm x 12cm x 20cm (9.84in x 4.72in x 7.87in)
