Description
Item specifics
Brand Name: MILEVIEW
Connection Method: Wired
Camera Sensor type: CMOS
Answering Mode: Hands-free
Display Size: 7
Kit Configuration: One to One video doorphone
Viewing Angle (°): 90
Type: Indoor Machine
Display Screen Type: Color
Zone Input: None
Connection Type: Wired
Installation: Wall Mounting
Technology: Digital
Samrt Home Interface: Yes
Waterproof: Yes
IP Camera Interface: Yes
Model Number: V70F
Resolution: > 420 TV Line
Sensor Size(Inch): 1/3
Power: 15V DC
Material: ABS Metal
Doorbell: Yes
Access Control: Unlock button at the monitor
Camera: 700TVL COLOR
Power: 110-240V AC
monitor size: 7 inch Color LCD TFT Screen
type: video intercom / doorphone / doorbell
wiring type: wired (4 wire)
feature: supports communication between two monitors
function: intercom / monitor / unlock
Ring cancel function: do not disturb mode
color of monitor: white panel
Product Description
Features
With micro-processing technology, auto-remote control, excellent performance and high reliability.
7”color TFT LCD. No radiation, low power consumption and high definition. Resolution: 800*480
Monitor the view out of the door
Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc

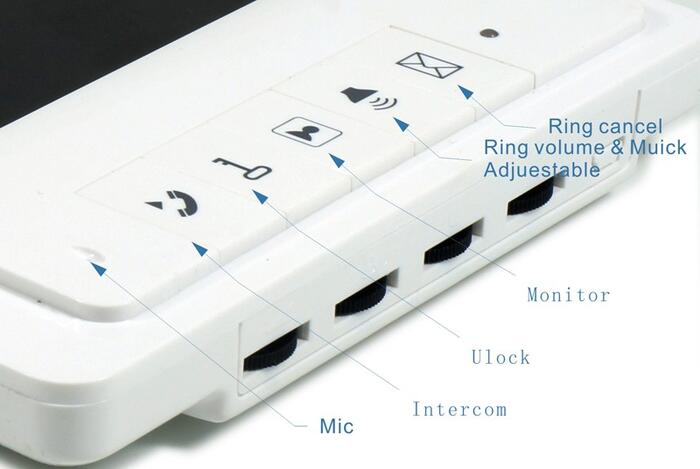

Hands-free intercom

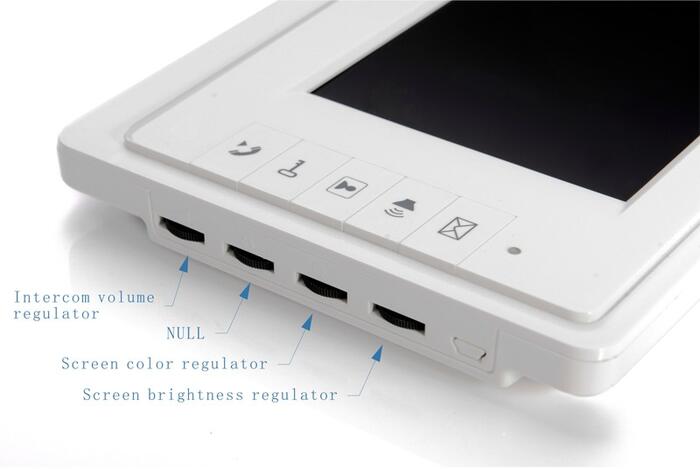

Brightness, chroma and volume adjustable.
16-chord melody rings for option
Max: 2camera+6 monitors;
Mute mode, ring cancel function

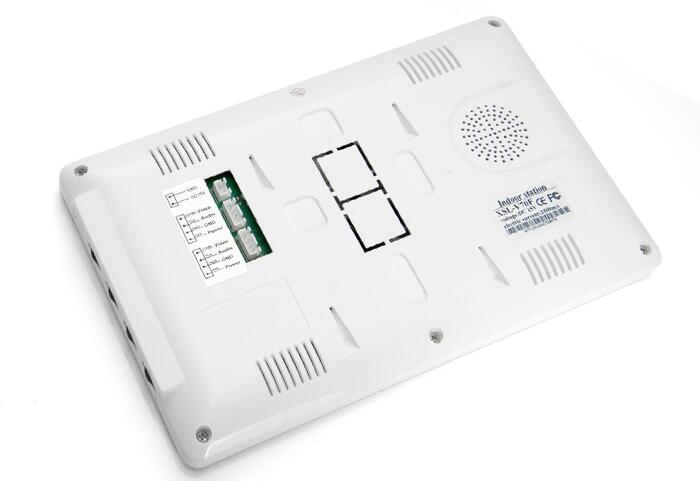

4-wire wiring
Details
Specification
Indoor Monitor
Screen 7″ LCD Digital 16:9 Display
Effective Pixels 800 x 480
Delay Calling Time 120s ± 10%
Delay monitoring time 40s ± 10%
Adapter Input AC100 – 240V 50-60HZ
Adapter Output DC15V
Unit Consumption Less than 6W, standby less than 0.5W
Working Temperature -35 derees ~ 55 Celsius
Installation Wall mounted

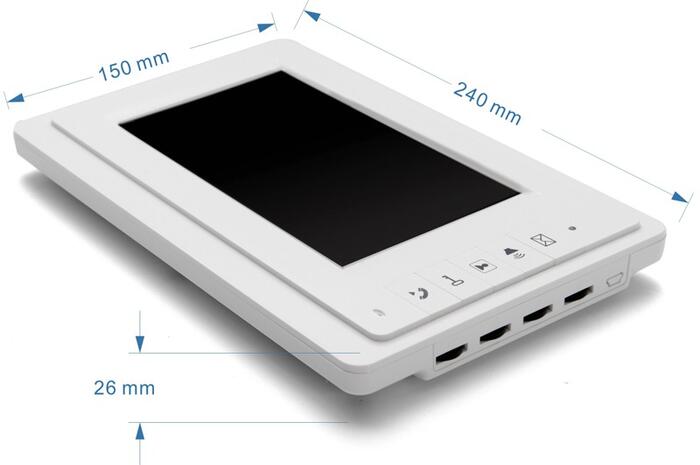

Dimension 240mm(L) x 150mm(W) x 23mm(H)
Weight 400g
Model V70F
Package
1 x indoor Monitor

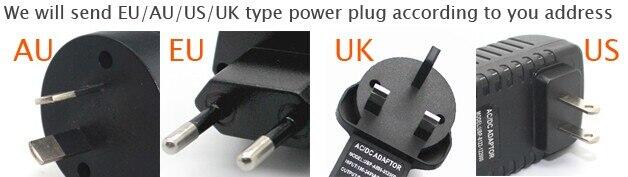

1 x power plug
1 x screws and connector cable for installation
1 x back-hang plate for installation
Packaging Details
Unit Type: piece
Package Weight: 1.0kg (2.20lb.)
Package Size: 28cm x 20cm x 16cm (11.02in x 7.87in x 6.30in)
