Description
Item specifics
Brand Name: TOTOLINK
Type: Wireless
With Modem Function: No
Max. LAN Data Rate: 100Mbps
Model Number: EX1200/EX1200M
Standards And Protocols: Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11g
Package: No
Application: Soho
Function: Firewall,QoS
LAN Ports: 1
WAN Ports: 1 x10/100Mbps
Number of USB Interfaces: None
Supports WDS: Yes
Supports WPS: Yes
Wi-Fi Supported Frequency: 2.4G & 5G
2.4G Wi-Fi Transmission Rate: 300 Mbps
Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 10/100Mbps
5G Wi-Fi Transmission Rate: 867Mbps
Antenna :: 2 *5dBi External Antennas
Dimensions (W x D x H) :: 4.6 x 2.8 x 2.6 in. (117 x 72 x 66mm)
Working Modes :: AP Mode, Extender Mode
Product Description
NOTED: There have EX1200 and EX1200M in stock right now, different model name but with same function, will sell in random. Please rest assured both are with good quality.
Product Overview

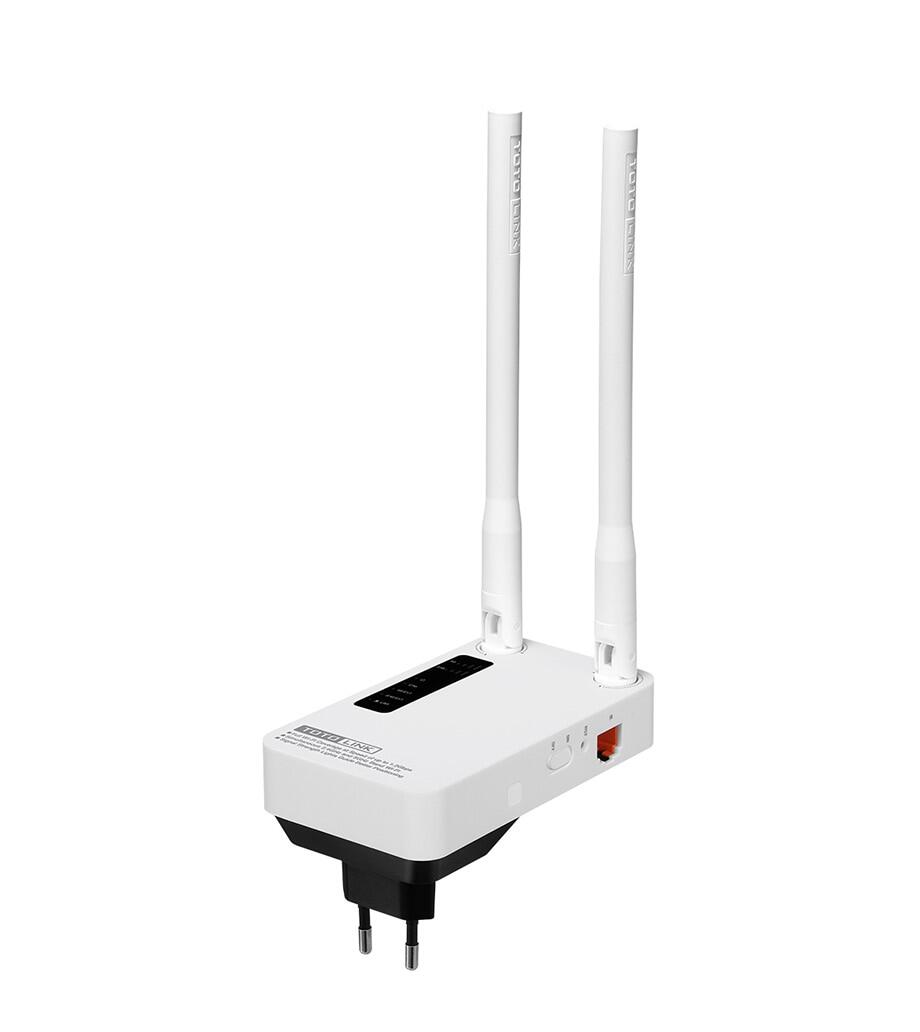

EX1200/ EX1200M WiFi Range Extender is designed to boost your existing network range with up to 1167Mbps wireless speed. It turns your single band Wi-Fi into dual band wireless networks and compatible with both 802.11ac & b/g/n Wi-Fi devices.
The wall-plugging design help you save space and is applicable for most countries. Generally, it is ideal for very large houses to reduce Wi-Fi dead spots and enjoy HD video streaming, online gaming etc.
Main Features

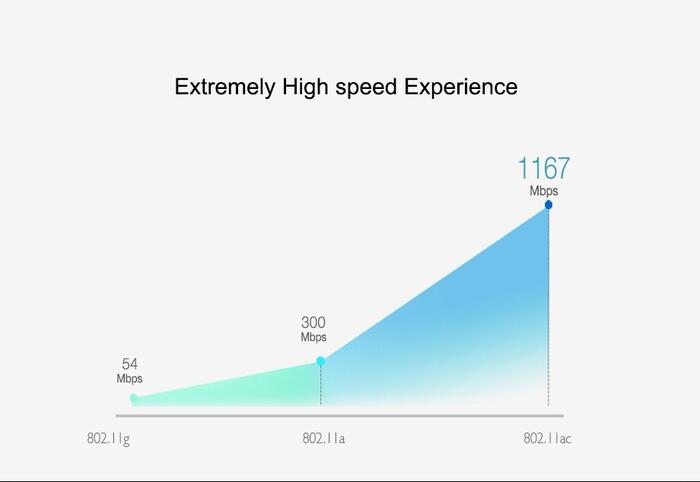

Extremely High Speed Experience
Easy and Quick Setup by Smart Phone
Stable Wi-Fi with Two External 5dBi Antennas
One-touch Wi-Fi Secure Extension
Signal Strength Lights Guide Better Positioning
Wi-Fi Scheduler
?
EX1200/EX1200M adopts the next generation 802.11ac technology and delivers up to
1200Mbps, optimized for Internet activities requiring high bandwidth,
such as HD videos and online gaming.
It support of dual band helps extend your existing 2.4G or 5GHz WiFi signal with high
speed to further distance, turning you signal band WiFi to dual band
and reducing WiFi dead spots.
With one 100Mbps Ethernet port, you are able to connect your PC or laptop
to EX1200/EX1200M directly and enjoy gigabit transfer speed.
EX1200/EX1200M supports special UI design for Smart phones, simply connect your
phone to extender’s SSID, the user settings page will pop-up automatically,
no more than three steps to finish the WiFi extension.
Two external dual band high performance antennas with MIMO technology, ensure stable
wireless connection and data transmission for multiple WiFi devices simultaneously.
Simply press the WPS button on both EX1200/EX1200M and your wireless router, secured home WiFi connection(2.4G or 5G) can be established qucikly to extend the coverage of your existing Wlan network.
Two signal strength LED indicators are provided to show you how the wi-fi signal from
original WLAN is, so that you could place the extender
into a optimum position to get best WiFi.
Product Display
Product Specification
Interface:
1 *10/100Mbps Ethernet port
Power Supply:
AC 100V~240V / 50~60Hz 0.1A
Antenna:
2*5dbi External Antennas
Buttons:
1 *5GHz WPS , 1*2.4GHz WPS, 1 *Power ON/OFF Slide Switch, 1*RST
Standards:
IEEE802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g,
IEEE 802.11b
RF Frequency:
2GHz/5GHz
Data Rate:
2.4GHz: 300Mbps
5GHz: 867Mbps
EIRP:
2.4GHz < 20dBm
5GHz < 23dBm
Advanced Features:
1Easy Wi-Fi Extension by Smart Phone
Two Wi-Fi Modes: AP Mode and Extender Mode
Reception sentivity:
2.4G: 11b:<-79dBm; 11g: <-68dBm; 11n:HT20<-65dBm HT40: <-61dBm
5G: 11a:<-68dBm; 11ac: HT20<-65dBm HT40: <-61dBm HT80: <-51dBm
Package Contents:
EX1200M Wireless Extender *1
Ethernet cable*1
Quick Installation Guide*1
Environment:
Operating Temperature: 0?~50 ? (32 ?~122?)
Storage Temperature: -40?~70 ? (-40 ?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Packaging Details
Unit Type: piece
Package Weight: 0.45kg (0.99lb.)
Package Size: 30cm x 20cm x 10cm (11.81in x 7.87in x 3.94in)
